A long straight wire carrying current I and a square conducting wire loop of side l , at a distance 'a' from current wire as shown in the figure. Both the current wire and loop are in the plane of paper. Find the magnetic flux of current wire, passing through the loop.



11P10-1 Thermal Properties - Calorimetry, Heating Curve

 Specific Heat Capacity Concepts

12P09 Ray Optics and Optical Instruments

 Chapterwise Study notes

NEET past year Questions, Solutions

NCERT competency based questions 2024, Solutions

NCERT competency based questions 2023, Solutions

NCERT Exemplar Questions, Solutions

Mirror Equation

Plotted for f = -10 cm Concave mirror

Study the six different cases.

Change the f value in the side bar slider to f = +10 cm to study Convex mirror.

Lens Equation

Plotted for f = +10 cm Convex Lens

Study the six different cases.

Change the f value in the side bar slider to f = -10 cm to study Concave lens.

Plane Mirror oPhysics.com

Study that the object distance and image distance are same in plane mirror, also the mirror can be rotated.

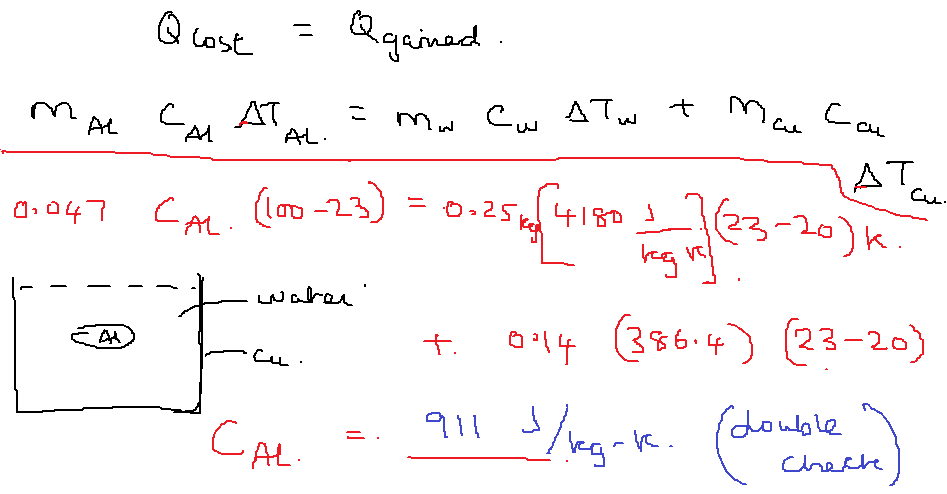

A sphere of 0.047 kg aluminium is placed for sufficient time in a vessel containing boiling water, so that the sphere is at 100 °C. It is then immediately transfered to 0.14 kg copper calorimeter containing 0.25 kg water at 20 °C. The temperature of water rises and attains a steady state at 23 °C. Calculate the specific heat capacity of aluminium.

Use specific heat capacity concepts.

12P10 Wave Optics

Chapterwise Study notes

NEET past year Questions, Solutions

NCERT competency based questions 2024, Solutions

NCERT competency based questions 2023, Solutions

NCERT Exemplar Questions, Solutions

To refresh your Waves concepts visit Related Chapter 11P14 Waves page

Introduction to waves, Water, Sound, Light waves.

What is the difference between the two graphs shown?

Can you move the Electric field sensors to different locations and plot the Electric Field?
